Wilco Offroad Hitchgate Max Complete Kit

Wilco Offroad Hitchgate MAX Complete Kit

Built for oversized tires, heavy cargo, and serious adventures, the Hitchgate MAX is Wilco Offroad's strongest and most capable swing-away tire carrier.

The Wilco Offroad Hitchgate MAX Complete Kit is engineered for overlanders, off-road enthusiasts, and adventurers who need maximum carrying capacity without sacrificing rear vehicle access. With an impressive 350-pound load rating, support for spare tires up to 38 inches, and compatibility with a wide range of accessories, the Hitchgate MAX transforms your receiver hitch into a versatile cargo and recovery platform.

The swing-away design opens a full 160 degrees, providing easy access to tailgates, rear cargo areas, and camper setups. Whether you're carrying a full-size spare, fuel, recovery gear, a Hi-Lift jack, or an optional cargo basket, the Hitchgate MAX is built to handle demanding expeditions and long-distance travel.

350 lb Load Rating • Supports 38" Tires • 160° Swing-Out Design • Tow Rated • Adventure Ready

Key Features

• Heavy-Duty Capacity: Rated to carry up to 350 lbs of combined tire and accessory weight.
• Oversized Tire Support: Accommodates spare tires up to 38 inches on full-size trucks and SUVs.
• 160° Swing-Away Access: Opens wide for convenient access to rear cargo areas and tailgates.
• Integrated Wedge Lock System: Includes Wilco's anti-wobble Wedge Lock for a secure, rattle-free fit.
• Tool-Free Tire Removal: Polyurethane wheel cone and lockable threaded U-bar allow quick tire installation and removal.
• Adjustable Wheel Mount: Adjustable wheel support plate accommodates a variety of wheel and tire combinations.
• Integrated License Plate Mount: Maintains proper license plate visibility.
• Secondary Open Position Lock: Helps keep the carrier open on uneven terrain or steep inclines.
• Padlock Compatible: Additional security options for carrier retention.
• Enhanced Structural Strength: Thicker tubing and additional gussets improve rigidity and durability.

Included Components

• Hitchgate MAX Swing-Away Carrier
• Adjustable Tire Mount Assembly
• Polyurethane Wheel Cone
• Lockable Threaded U-Bar
• Integrated License Plate Mount
• Wedge Lock Anti-Wobble System
• Complete Installation Hardware

Towing Capacity

• Maximum Trailer Weight: 7,500 lbs
• Maximum Tongue Weight: 750 lbs

Actual towing capacity may be limited by your vehicle's manufacturer specifications.

Accessory Compatibility

Storage & Cargo

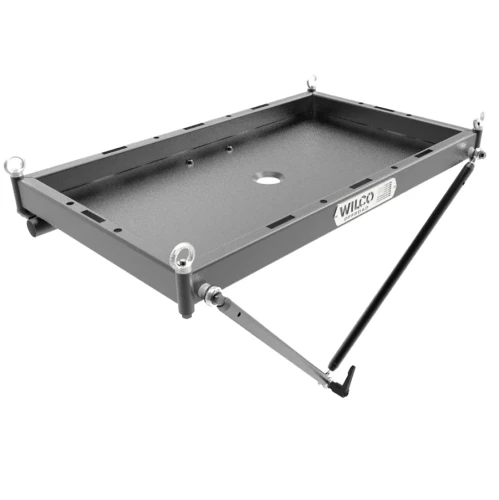

• Optional Cargo Basket Kit (CBEXP1)

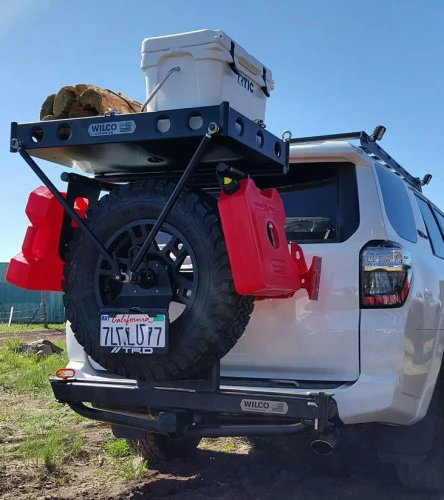

• Dual RotopaX Mount Kit (RPM32879)

Fuel & Recovery

• RotopaX 3-Gallon Fuel Containers
• Dual RotopaX Mounting Capability

Hi-Lift Jack Mounting

• Horizontal Hi-Lift Jack Bolt Kit (MAX Only)
• Horizontal Low-Rise Hi-Lift Mount (Dan's Hi-Lift Mount)

Specifications

• Product Type: Swing-Away Tire Carrier
• Load Capacity: 350 lbs
• Maximum Tire Size: 38" (Full-Size Trucks & SUVs)
• Swing-Out Angle: 160°
• Tow Rating: 7,500 lbs Trailer / 750 lbs Tongue Weight
• Mounting Style: Receiver Hitch
• Anti-Wobble System: Included Wedge Lock

Fitment Requirements

• Minimum 4.5" clearance required behind the center of the hitch pin hole for proper Wedge Lock operation.
• Minimum 8" clearance required from hitch receiver to the bottom of the rear door or tailgate.
• Receiver opening should be flush with the rear bumper or recessed no more than 1.5".
• Maximum supported tire size is 38" on full-size vehicles.
• Not compatible with the Wilco Hitchgate Accessory Plate.

Shipping Information

• Ships via LTL Freight due to size and weight.
• Delivered shrink-wrapped on a pallet.
• Additional freight charges may apply depending on delivery location.

Maintenance Requirements

• Periodically inspect and tighten pivot hardware to 60–70 ft-lbs.
• Apply grease to pivot shaft periodically, especially in wet or snowy climates.
• Inspect Delrin washers and T-handle bushings for wear and replace as necessary.

Why Choose the Wilco Hitchgate MAX?

• Highest load capacity in the Hitchgate lineup.
• Supports oversized spare tires and adventure gear.
• Retains rear vehicle access with a full swing-away design.
• Tow-rated for trailers, campers, and overland setups.
• Compatible with a wide range of cargo, fuel, and recovery accessories.
• Built for serious off-road and expedition travel.
